    Products center

    16*POTS Fiber Mux(Desktop Tpye)

    Type:FCP-O16/FCP-S16 Message

    Description:16 * telephones（Desktop Tpye）, Support 4U rackmount,SNMP

    Product Description
                 The telephones Optical Desktop provides 16 FXO / FXS telephones, wall-mounted and can provide plug-4U rack, support SNMP network management.
    Functional Properties

    Ø Based on proprietary integrated circuit;

    Ø support FXO voice port FXS ports and magneto telephones interface; FXO port and docking PBX,

           FXS port is connected to the user's phones;

    Ø Voice FXO / FXS access, support caller ID function and reverse polarity billing functions;

    Ø Support Telephones Number mutual function of each site;

    Ø unrepeated transmission distance of up to 2 to 120 km;

    Ø 4U rack machines can provide plug-in, available SNMP network management;

    Ø multiple power mode options: AC220V, DC-48V / DC24V, etc;

    Ø telephones interface with lightning protection, lightning reached IEC61000-4-5 Short circuit current wave 8 / 20μs,

          the peak output voltage 6KV open standards;

    Technical Parameters

    u  Fiber

             Multi-mode Fiber

        50/125um, 62.5/125um,

        Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

        Transmitting power: -12dBm (Min) ~-9dBm (Max)

        Receiver sensitivity: -28dBm (Min)

        Link budget: 16dBm

            Single-mode Fiber

        8/125um, 9/125um

        Maximum transmission distance: 40Km

        Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

        Wave Length: 1310nm

        Transmitting power: -9dBm (Min) ~-8dBm (Max)

        Receiver sensitivity: -27dBm (Min)

        Link budget: 18dBm

    u  FXS phones Interface

        Ring voltage: 75V

        Ring frequency: 25HZ

        Two-line Impedance: 600 Ohm (pick up)

        Return loss: 40 dB

    u  FXO Switch Interface

        Ring detect voltage: 35V

        Ring detection frequency: 17HZ-60HZ

        Two-line Impedance: 600 Ohm (pick up)

        Return loss: 40 dB

    u  EM 2/4 Line

        AD: 0dB

        DA: -3.5dB

        Two/Four-line Impedance: 600 Ohm

        Return loss: 20 dB

    u   Power

        Power supply: AC180V ~ 260V；DC –48V；DC +24V

        Power consumption: ≤10W

    u   Dimension

        Product Size:         216X130X42mm(WXDXH)

           Piece Weight :    1.3KG

     u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

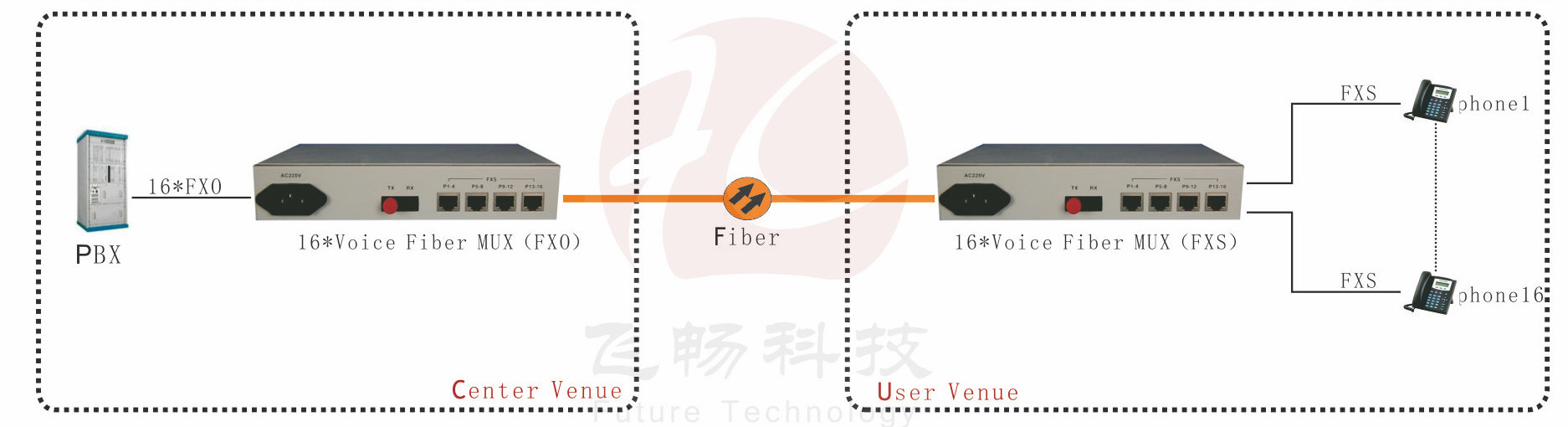

    Application Scheme

    Applications:


    DataSheet Download
