    Products center

    4U Intergrated Access Rack

    Type:FCK14-a2/d2 Message

    Description:4U Rackmount ， can insert various types of interface converter ，Video fiber Transceiver ，Fiber modem ，PDH ，PCM

    Product Description
                  This is 4U 17 interfaces Rack. The rack height is 4U, can insert 17 block interface conversion cards, or1 block network management card and 16 feature cards, each card works independently. Different interface conversion cards can be inserted in and work simultaneously on the same rack. It uses communication isolation technology communication to separate system power from interface conversion card completely to ensure the reliability of the entire system

    Functional Properties
    Ø Can insert various types of interface converter produced by our company
    Ø 19-Inch 4U standard rack, using the principle of air, good rack radiating performance, ease of management and maintenance
    Ø Can insert up to 16 hot-plug cards, each interface conversion card can achieve conversion function independently

    Ø Two power panel slots support mutual hot spare between two power units. Each power unit can support the entire rack work full of

          configuration. Two power units work together through shunt on the one hand to reduce each power unit load, on the other hand by

           mutual hot spare to ensure if one power unit having problem within the time rack inner function panel can work

    Ø Support SNMP Network Management
    Ø Fully meet Telecom operation requirements, Mean time Between Failures (MTBF) is more than 50,000 hours.
    Technical Parameters

    u   Power

        Power supply:AC180V ~ 260V；DC–48V；DC +24V
        Maximum number of power modules: 2 power modules
        Maximum power parameters of the function card:  DC5V/1.5A (7.5W)
        Power consumption: 100W

    u   Dimension

        Product size:        443X365X195mm(WXDXH)
        Piece weight : 8KG

    u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity: 5%~95 % (no condensation)
        Storage temperature: -40°C ~ 80°C
        Storage Humidity: 5%~95 % (no condensation)

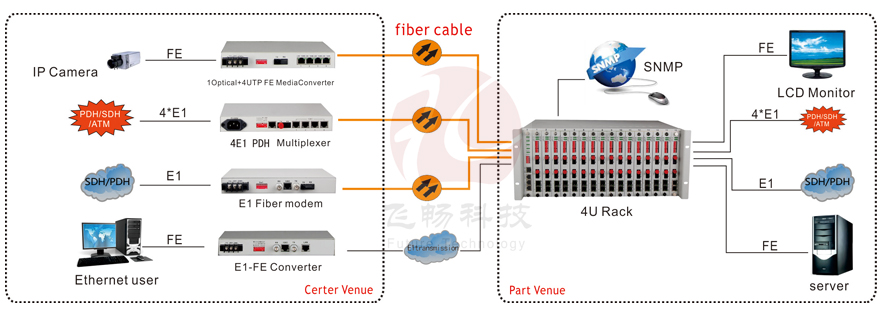

    Application Scheme

    Applications
