    Fiber-30Voice + 4E1 + 4GE + 4RS232 Multiplexer

    Type:FCP-O30E4G4R4C1/FCP-S30E4G4R4C1 Message

    Description:30 * telephones，4E1，4*1000 Mbps Ethernet，Console or SNMP，Support 6U rackmount

    Product Description
                 This series of telephones Optical device provides 30 channels of phones 1 to 4 E1 interface, 4 10/100 / 1000M Gigabit Ethernet interface (wire speed 1000M), as well as four business expansion interface. 4 port Ethernet interface switching, VLAN support division. 4 Extended service interface can be used as RS232 / RS485 / RS422 asynchronous data, voice signal, twenty-four wire E & M audio signals, digital signals, transmission channel, the application is very flexible.
    Functional Properties

    Ø Based on proprietary integrated circuit;

    Ø E1 interface complies with G.703, all-digital clock recovery and smooth phase-locked technology;

    Ø support FXO voice port FXS ports and ports, EM2 / 4 audio interface, magneto telephones interface; FXO port and PBX

           docking port and the user is connected to FXS telephones;

    Ø Voice FXO / FXS access, support caller ID function and reverse polarity billing functions;

    Ø Support Telephones Number mutual function of each site;

    Ø providing four expansion interface, can be extended from 1 to 4 asynchronous data, such as RS232 / RS485 / RS422 / Manchester codes;

         or 1 to 8-way switch, 1 to 4-way voice, or two / four-wire audio, etc.;

    Ø Ethernet 10/100 / 1000M, full / half duplex fully adaptive, support VLAN division;

    Ø 4-way Ethernet interface for the exchange of the mouth, it can be divided VLAN, you can set up a 4-channel logical isolation;

    Ø Each Ethernet ports support Auto-MDIX (cross / straight cable adaptation);

    Ø unrepeated transmission distance of up to 2 to 100 km;

    Ø multiple power mode options: AC220V, DC-48V / DC24V, etc;

    Ø telephones interface with lightning protection, lightning reached 17626.5 (IEC61000-4-5) Short circuit current wave 8 / 20μs,

         the peak output voltage 6KV open standards;

    Technical Parameters

    u  Fiber

             Multi-mode Fiber

        50/125um, 62.5/125um,

        Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

        Transmitting power: -12dBm (Min) ~-9dBm (Max)

        Receiver sensitivity: -28dBm (Min)

        Link budget: 16dBm

            Single-mode Fiber

        8/125um, 9/125um

        Maximum transmission distance: 40Km

        Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

        Wave Length: 1310nm

        Transmitting power: -9dBm (Min) ~-8dBm (Max)

        Receiver sensitivity: -27dBm (Min)

        Link budget: 18dBm

    u  E1 Interface

        Interface Standard:      comply with protocol G.703;
        Interface Rate:             n*64Kbps±50ppm;
        Interface Code:            HDB3;

        E1 Impedance:             75Ω (unbalance), 120Ω (balance);

        Jitter tolerance:            In accord with protocol G.742 and G.823

        Allowed Attenuation:   0~6dBm

    u  Gigabit Ethernet Interface (10/100/1000M)

        Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

        MAC Address Capability: 4096

        Connector:                  RJ45, support Auto-MDIX

    u  FXS phones Interface

        Ring voltage: 75V

        Ring frequency: 25HZ

        Two-line Impedance: 600 Ohm (pick up)

        Return loss: 40 dB

    u  FXO Switch Interface

        Ring detect voltage: 35V

        Ring detection frequency: 17HZ-60HZ

        Two-line Impedance: 600 Ohm (pick up)

        Return loss: 40 dB

    u  EM 2/4 Line

        AD: 0dB

        DA: -3.5dB

        Two/Four-line Impedance: 600 Ohm

        Return loss: 20 dB

    u   Power

        Power supply: AC180V ~ 260V；DC –48V；DC +24V

        Power consumption: ≤10W

    u   Dimension

        Product Size:    Mini Type    216X140X31mm(WXDXH)

                              19inch       485X200X45mm(WXDXH)

         Piece Weight :    mini 1KG / 19inch  2.4KG

     u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

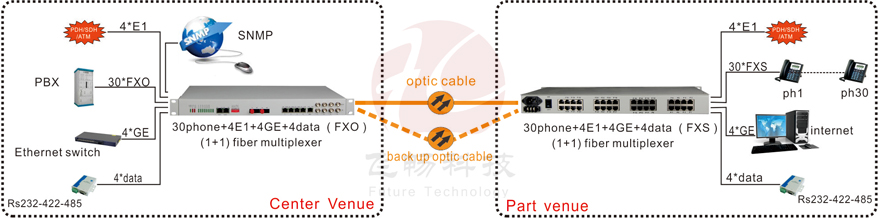

    Application Scheme

    Applications







    DataSheet Download
