    8*POTS+4RS232 Fiber Mux(Desktop Tpye)

    Type:FCP-O8R4/FCP-S8R4 Message

    Description:8 * telephones（Desktop Tpye），4RS232/422/485/dry connect，Support 4U rackmount，SNMP

    Product Description
          This device is a desk-top PCM multiplexer that can provides 1-8 channel FXO/FXS telephones and 4 channels RSS232/422/485 interface, wall-mouthed or 4U rack plug-in, support the SNMPA service.
    Functional Properties

    Ø Based on self -copyright IC

    Ø   Voice port supports FXO and FXS port, magneto telephones interface, FXO port docking with program-controlled switchboard,

           FXS port connected to the user's telephones;

    Ø   Voice FXO/FXS access supports caller ID feature and reverse polarity billing functions

    Ø   Support various sites mutual number allocations function

    Ø The transmission distance is up to 2-120Km without interruption

    Ø The 4 U rack plug-in can be offered and support the SNMPA service.

    Ø AC 220V, DC-48V, DC24V can be optional

    Ø Data interface provide the lightning-protection function，which can reach the 17626.5(IEC61000-4-5) (8/20μs), CM (6KV).


    Technical Parameters

    u  Fiber

             Multi-mode Fiber

        50/125um, 62.5/125um,

        Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

        Transmitting power: -12dBm (Min) ~-9dBm (Max)

        Receiver sensitivity: -28dBm (Min)

        Link budget: 16dBm

            Single-mode Fiber

        8/125um, 9/125um

        Maximum transmission distance: 40Km

        Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

        Wave Length: 1310nm

        Transmitting power: -9dBm (Min) ~-8dBm (Max)

        Receiver sensitivity: -27dBm (Min)

        Link budget: 18dBm

    u  E1 Interface

        Interface Standard:      comply with protocol G.703;
        Interface Rate:             n*64Kbps±50ppm;
        Interface Code:            HDB3;

        E1 Impedance:             75Ω (unbalance), 120Ω (balance);

        Jitter tolerance:            In accord with protocol G.742 and G.823

        Allowed Attenuation:   0~6dBm

    u  Ethernet interface(100/100M)

        Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

       MAC Address Capability: 4096

        Connector:                  RJ45, support Auto-MDIX

    u  FXS phones Interface

        Ring voltage: 75V

        Ring frequency: 25HZ

        Two-line Impedance: 600 Ohm (pick up)

        Return loss: 40 dB

    u  FXO Switch Interface

        Ring detect voltage: 35V

        Ring detection frequency: 17HZ-60HZ

        Two-line Impedance: 600 Ohm (pick up)

        Return loss: 40 dB

    u  EM 2/4 Line

        AD: 0dB

        DA: -3.5dB

        Two/Four-line Impedance: 600 Ohm

        Return loss: 20 dB

    u   Power

        Power supply: AC180V ~ 260V；DC –48V；DC +24V

        Power consumption: ≤10W

    u   Dimension

        Product Size:         216X140X31mm(WXDXH)

        Piece Weight :    1.5KG

     u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

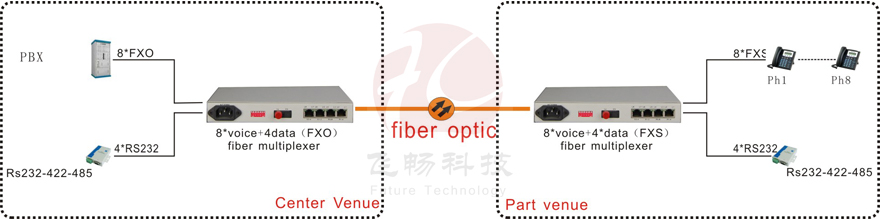

    Application Scheme

    Applications  1



    Applications 2

    DataSheet Download
