    Products center

    1 Optical+4UTP FE Fiber Media Converter(With remote manageme

    Type:FCM-F4 Message

    Description:2 * FE+1 * 100Base-S/LX Ethernet Switch ， With remote management ，SNMP，Local is 2 * FE+1 * 100Base-S/LX Ethernet Switch ，management remote is 4 * FE+1 * 100Base-S/LX Ethernet Switch

    Product Description
                 This series of products are IEEE802.3 Ethernet media converter, can achieve 4 10/100Base-T twisted pair and light medium conversion or extend the network transmission distance, is mainly used for optical fiber network transmission distance (20/40/60/80/120 km), fully support the 10/100M transmission rate;
                 Equipment based on Ethernet switch chip +FPGA program, with a strong local and remote management, has the alarm function, the operation is stable and reliable, low power consumption, high integration, small size.
    Functional Properties
    Ø device provides two Ethernet ports, one optical port, automatically adapt to the 10 / 100Mbps environment, easy to upgrade the network;
    Ø The device comes with OAM remote management frames, real-time access and manage remote Ethernet;
    Ø Ethernet electrical interface with the distal end of the LINK LED display for easy fault diagnosis.

    Ø support full and half duplex network communication, with auto-negotiation capability, power port MDI / MDI-X Adaptive

          without manual adjustment;

    Ø support SNMP network management, you can determine when the light no LINK Ethernet fiber cut or remote shutdown is to support the

          local device to the remote device configuration, you can set the local device and remote SNMP devices in the following functions:

     u Ethernet copper ports each way five operating mode setting;

     u every channel Ethernet electrical interface flow control switch;
     u Ethernet bandwidth control for each channel electrical interface from 0-100M can set the smallest particles 32K;
     u every channel Ethernet electrical interface total eight 802.1P priority level setting;

     u provide up to three kinds of Ethernet isolation mode, you can come in to support demand with Vlan Tag isolation and without Vlan

           Tag Ethernet packet;

    Technical Parameters

     u  Ethernet UTP Interface

        Interface rate:              10/100 M, half/full duplex auto-negotiation

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

        MAC Address Capability: 4096

        Connector:                  RJ45, support Auto-MDIX

    u   Optical Ethernet interface

        Wave Length:          1310nm, 1550nm

        Interface rate:              100 M, half/full duplex

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

        MAC Address Capability: 4096

        Connector:                  FC/SC

        Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

       Transmission distance may also be limited by fiber optic bandwidth.

    u   Power

        Power supply: AC180V ~ 260V；DC –48V；DC +24V

        Power consumption: ≤10W

    u   Dimension

        Product Size :       216X140X31mm( WX DXH))

        Simple packaging : 274X193 X84mm ( WX DXH)

       Piece Weight: 1.8KG

    u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

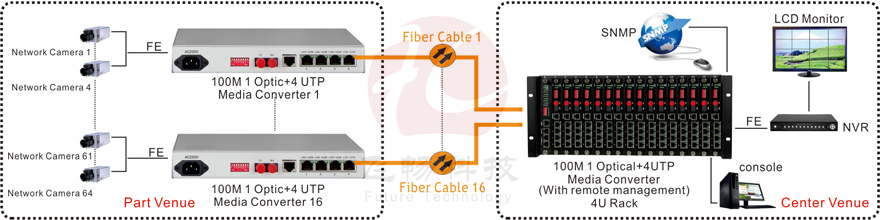

    Application Scheme

    Applications
